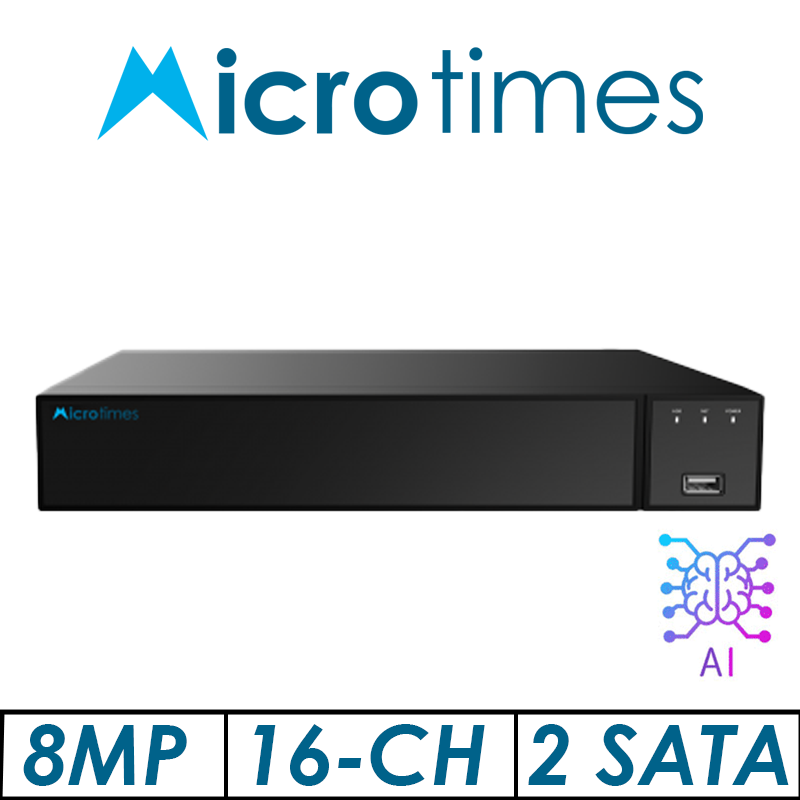

8MP 16-CH MICROTIMES 2-SATA AI HUMAN DETECTION MOTION DETECTION HD XVR H.265/H.265+/ XVRM80016HD

Support Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Input: 16CH BNC
Support Human Detection
Support H.265/H.265+/H.264/H.264+ Video Compression
2 SATA Hard Disk (2.5"/3.5"SATA, Up to 16TB)
Support a variety of Language

System

Main Processor           MC6680

Operating System        Embedded LINUX



Video

Input    Normal Mode:

Default: 16*(AHD/TVI/CVI:8MP; TVI/AHD: 5MP;  AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+8*network(Max 8MP)

Analog+Network: 2*Analog(8MP)+22*network(Max 8MP),4*Analog(8MP)+20*network(Max 8MP),6*Analog(8MP)+18*network(Max 8MP)

,8*Analog(8MP)+16*network(Max 8MP),10*Analog(8MP)+14*network(Max 8MP),12*Analog(8MP)+12*network(Max 8MP),14*Analog(8MP)+10*network(Max 8MP),16*Analog(8MP)+8*network(Max 8MP)

Network: 32*8MP/5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤160M)

Input    16CH BNC

Signal Type     Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network

Output 1HD,1 VGA, 1 CVBS



Audio

Input    6 ChannelRCA,support AOC

Two-way Audio NO

Output 1 Channel RCA



Alarm

Sensor Input    4

Output 1

Motion Detection         16 Channel

Trigger Events Recording,  Email, Screen tips, Buzzer, Push notifications(motion detection)

Email Alarm     Send Image to The Designated E-mail



AI Function

Human Detection         YES



PTZ

Interface          RS485

Protocol           Pelco-D, Pelco-P

Baud Rate       110~921600

Address           0~255



Display

VGA     Resolution:1920 × 1080P, 1280 × 1024 , 1280 × 720,1024 × 768

HD Output            Resolution:4K,1920x1080,1280x1024,1280x720,1024x768

Display Split     1/4/6/9/16/25/36

Privacy Masking          3 Rectangular Zones (Each camera)

OSD     Camera title, Time, Video loss, Alarm, Motion detection, Recording



Recording

Video Compression     H.265/H.265+/H.264/H.264+

Audio Compression     G.711u/G.711a



Resolution 5MP(2560×1952),8MP_LITE(1920×2160),5MP_lite(1280×1952),1080P(1920×1080),720P(1280×720),960H(960×480)

Video Quality   Lowest/Low/Ordinary/Good/Better/Best

Record Rate    Analog:  PAL: 8MP_LITE(1920×2160 16*8fps),5MP(2592×1944 16*6fps),5MP_Lite(1280×1952 16*10fps),1080P(1920x1080 16*15fps)

NTSC:8MP_LITE(1920×2160 16*8fps),5MP(2592×1944 16*6fps),5MP_Lite(1280×1952 16*10fps),1080P(1920x1080 16*15fps)

Pure IP(H.265):

PAL :8MP@20x25fps, 5MP@32x25fps,4MP@32x25fps,

3MP@32x25fps, 1080P@32x25fps, 960P@32x25fps, 720P@32x25fps, NTSC:8MP@20x30fp, 5MP@32x30fps,4MP@32x30fps, 3MP@32x30fps, 1080P@32x30fps, 960P@32x30fps, 720P@32x30fps, D1@32x30fps

 Record Mode  Manual\Timer\Motion Detection\Alarm

Playback & Backup

Decode Capability       8*1080P@30fps

Sync Playback Pure Analog:  16CH 8MP_LITE@8fps,16CH 5MP@6fps,16CH 5MP_Lite@10fps,16CH 1080P@15fps, 16CH 720P@15fps,16CH 960H@30fps

Mix Mode: 2CH 4K@30fps,3CH 5M@30fps, 4CH 4M@30fps,5CH 3M@30fps, 8CH 1080P@30fps,16CH 5M@6fps,15CH 8M_LITE@8fps,16CH 1080P@15fps

Pure IPC:2CH 4K@30fps,3CH 5M@30fps, 4CH 4M@30fps,5CH 3M@30fps, 8CH 1080P@30fps

Remote Playback        4 Channel / 1Channel

Search Mode   ALL, Channel, Manual, Time, Date, Motion Detection,Alarm,Tag

Playback Functions     Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen

Smart Phone Playback 4 Channel

Backup Mode  USB Device(with fomat FAT 32 )/Network/FTP



Network

Interface          1 RJ45 10M/100M Adaptive Ethernet Interface

Network Functions       TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP

DDNS  Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN,DYNAMIC_PLANET,EASY_PLANET

Web Browser   Edge,IE8-11, Google Chrome , Firefox ,Safari

CMS Software Support  Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS

Extra Stream   CIF/D1(1-30fps)

Smart Phone   iPhone, ipad,  Android ,Android pad



Hard Disk Driver

Interface Type 2 SATA Interface

Capacity          2 SATA Hard Disk (2.5"/3.5" SATA, Up to 16TB)



General

Language        Simplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese,

UTC Control    YES

USB Interface  2 USB 2.0 Interfaces

Power consumption     DC 12V/4A  ≤15W (Without Hard Disk)

Working Environment  -10~50℃/10~90%

Dimension (W×D×H)    310*295*46(mm)

Weight 3.5kg(Without HDD)
